Description

Hikvision 4TB 3.5″ SATA Surveillance Hard Disk – DS40HKVS-VX1

Upgrade your surveillance system with the Hikvision 4TB 3.5″ SATA Surveillance Hard Disk (DS40HKVS-VX1), engineered for peak performance and reliability. Ideal for large-scale security systems, this hard drive is purpose-built to handle continuous 24/7 operation, supporting up to 32 high-definition camera streams without compromising on performance. If you’re looking to expand your surveillance storage, explore other options on our computer accessories storage catalogue.

Crafted with cutting-edge technology and built for endurance, this surveillance hard drive ensures seamless recording with its 128MB cache buffer, reducing frame drops during high-intensity operations. Learn more about Hikvision’s commitment to innovation on their official website.

Key Features

Massive 4TB Storage Capacity: Accommodates extensive surveillance footage for long-term data retention.
Supports Up to 32 HD Camera Streams: Perfect for large-scale security setups.
128 MB Cache Buffer: Smooth video recording that prevents frame drops during high-data flow.
Designed for 24/7 Surveillance: Built for continuous operation, ensuring reliable data recording around the clock.
High Annual Workload Rating: Up to 180TB/year workload, ideal for intensive surveillance tasks.
Advanced Format 512e Sector Technology: Enhances compatibility and data integrity.
Industry-Standard 3.5-inch Form Factor: Ensures broad compatibility with existing systems.

Technical Specifications

Model: DS40HKVS-VX1
Interface: SATA 6.0 Gb/s, backward compatible with 3.0 Gb/s and 1.5 Gb/s
Formatted Capacity: 4TB
Rotation Speed: 5400 RPM
Buffer Size: 128 MB
Maximum Data Transfer Speed: 176.4 MB/s (sustained)
Logical Data Block Length: HOST: 512B, DISK: 4096B

Power Consumption

Operating (Typical): 4.11 W
Active Idle: 2.36 W
Standby: 0.20 W

Environmental Conditions

Operating Temperature: 0°C to 60°C (No condensation)
Non-Operating Temperature: -40°C to 70°C (No condensation)
Relative Humidity: Operating: 5% to 90% RH; Non-operating: 5% to 95% RH
Altitude:
- Operating: -305 m to 3048 m
- Non-Operating: -305 m to 12,192 m

Shock and Vibration Resistance

Operating Shock Resistance: 686 m/s² (70 G) for 2 ms duration
Non-Operating Shock Resistance: 3430 m/s² (350 G) for 2 ms duration
Vibration Resistance:
- Operating: 4.90 m/s² (0.50 G) at 5–350 Hz; 2.45 m/s² (0.25 G) at 350–500 Hz
- Non-Operating: 29.4 m/s² (3.0 G) at 5–500 Hz

Why Choose the Hikvision 4TB Surveillance Hard Disk?

With its superior endurance and reliability, the DS40HKVS-VX1 is the ultimate solution for businesses and institutions that demand consistent performance for their security systems. Whether you’re running a corporate surveillance network or upgrading your home security setup, this hard disk guarantees seamless, high-capacity storage for continuous video recording.

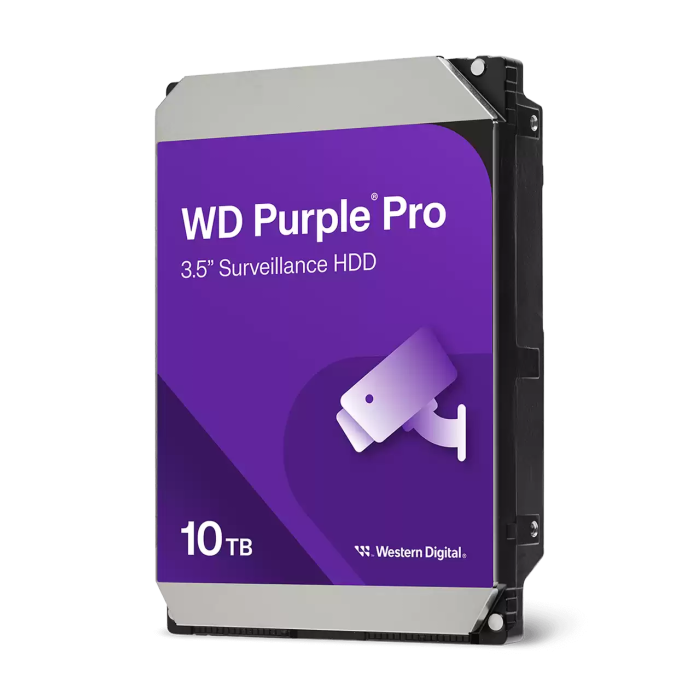

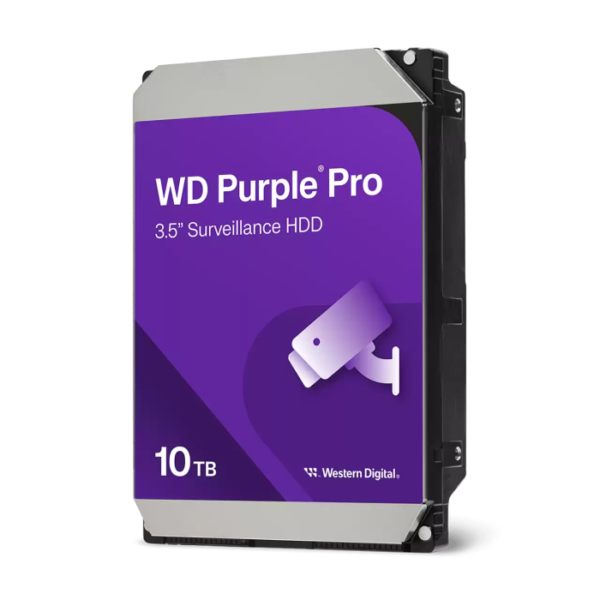

WD102PURP HDD AV Purple Pro 10TB, 256MB Western Digital
