Kirjeldus
Design
Fog proofYes
Form factorDome
IK codeIK10
International Protection (IP) codeIP67
Mounting typeCeiling/wall
Product colourWhite
Performance
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Connectivity technologyWired
Dynamic range120 dB
Placement supportedIndoor & outdoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Camera
Adjustment shutter speedAuto/Manual
Angle of rotation355 °
Camera pan controlYes
Camera shutter speed1/3 – 1/100000 s
Camera shutter typeElectronic
Camera tilt controlYes
Lens viewing angle, diagonal132 °
Lens viewing angle, horizontal111 °
Lens viewing angle, vertical58 °
Minimum illumination0.005 lx
Number of Privacy masking areas4
Pan range0 – 355 °
Tilt angle range20 – 70 °
White balanceAuto/Manual/Natural/Outdoor/Regional custom/Street lamp
Image sensor
Number of sensors1
Optical sensor size1/2.7 “
Sensor typeCMOS
Panoramic camera
Signal-to-Noise Ratio (SNR) (panoramic camera)56 dB
Lens system
Detect distance (wide)63.6 m
Focal length range2.8 – 6 mm
Identify distance (wide)6.4 m
Maximum aperture number1.4
Number of lenses1
Observe distance (wide)25.4 m
Recognize distance (wide)12.7 m
Night vision
LED typeIR
Night visionYes
Number of illumination LEDs2
Video
Back Light Compensation (BLC)Yes
Bit rateH.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR),Variable Bit Rate (VBR)
Frame rate30 fps
Gain control typeAuto
Highlight Compensation (HLC)Yes
Maximum resolution2960 x 1668 pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes
Total megapixels5 MP
Video formats supportedH.264/H.264B/H.265/M-JPEG
Audio
Audio formats supportedDSS
Audio input channels1.0 channels
Audio output channels1.0 channels
Voice codecsG.711a/G.711Mu/G.723/G.726/PCM
Network
BluetoothNo
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast
Supported network protocolsIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Wi-FiNo
Storage
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
RAM capacity512 MB
ROM capacity128 MB
Management features
Behavior analysisIntrusion detection
Web browserYes
Web-based managementYes
Power
DC output voltage12
Power consumption (Power over Ethernet (PoE))4.6 W
Power source typeDC,PoE
Operational conditions
Operating temperature (T-T)-40 – 60 °C
Storage temperature (T-T)-40 – 60 °C
System requirements
Mobile operating systems supportedAndroid/iOS
Weight & dimensions
Diameter64.8 mm
Height111 mm
Weight423 g
Packaging data
Package weight530 g
Packaging content
Number of cameras1
Category CodeFNC
Unit Box Height0.12
Unit Box Length0.14
Unit Box Width0.14

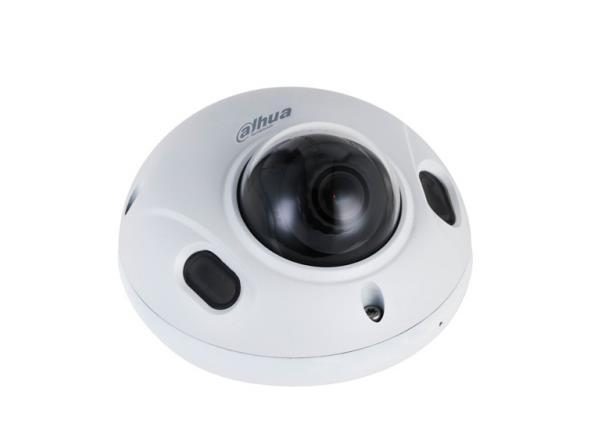

ModelIPC-HDBW3541F-AS-0280B-S2
Units per Shipping Box1
Unit Calculated Volume0.002352 cubm
Unit Calculated Weight0.57 kg
