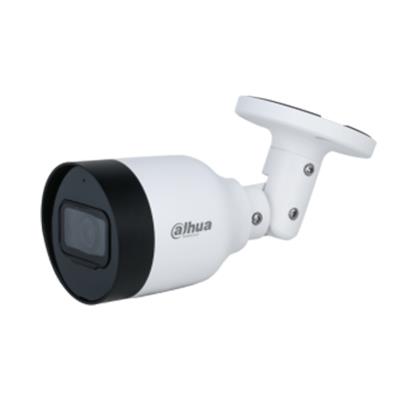

NET CAMERA 5MP IR BULLET/IPC-HFW1530S-0280B-S6 DAHUA

86,00 106,64  KM-taKM-ga
Dahua Technology IPC -HFW1530S-0280B-S6. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.03 lx, Field of view (FOV) angle: 106°, Angle of rotation: 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″), Effective sensor resolution: 2 pixels. Minimum illumination (panoramic camera): 0.003 lx, Signal-to-Noise Ratio (SNR) (panoramic camera): 56 dB

Series Overview
With features of simple installation, easy operation, and high
performance-cost ratio, Dahua Entry series network camera is applicable
to small and medium-sized scenes, such as homes/residences, smallsized retail stores, and other small and medium-sized enterprises.
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion
Detection (General) technology triggers alarm or records.
Smart Illumination
Dahua Smart Illumination technology can display image in the
environment of low illuminance or completely dark environment.
According to the distance of the targets, the camera adjusts
Illuminations intensity automatically to display the details of the moving
target.

Kirjeldus

Design
Form factorBullet
Housing materialMetal
International Protection (IP) codeIP67
Mounting typeCeiling/wall
Product colourWhite
Performance
Connectivity technologyWired
Day/night modeYes
Placement supportedIndoor & outdoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Camera
Adjustment shutter speedAuto/Manual
Angle of rotation360 °
Camera shutter speed1/3 s-1/100,000 s
Camera shutter typeElectronic
Field of view (FOV) angle106 °
Lens viewing angle, diagonal125 °
Lens viewing angle, horizontal106 °
Lens viewing angle, vertical56 °
Minimum illumination0.03 lx
Pan range0 – 360 °
Tilt angle range0 – 90 °
White balanceAuto/Manual/Natural/Outdoor/Street lamp
Image sensor
Effective sensor resolution2 pixels
Panoramic camera
Minimum illumination (panoramic camera)0.003 lx
Image sensor
Number of effective pixels (H x V)2880 x 1620 pixels
Number of sensors1
Optical sensor size1/2.7 “
Progressive scanYes
Sensor typeCMOS
Panoramic camera
Signal-to-Noise Ratio (SNR) (panoramic camera)56 dB
Lens system
Closest focusing distance0.8 m
Detect distance56 m
Focal length range2.8 mm
Identify distance5.6 m
Maximum aperture number2
Number of lenses2
Observe distance22.4 m
Recognize distance11.2 m
Night vision
LED typeIR
Night visionYes
Night vision distance30 m
Number of illumination LEDs1
Video
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Frame rate20 fps
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Maximum resolution2880 x 1620 pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes
Supported graphics resolutions2304 x 1296/2560 x 1440/2688 x 1520/2880 x 1620
Total megapixels5 MP
Video compression formatsH.264/H.264B/H.265/MPEG7
Video formats supportedH.264/H.264B/H.265
Video recordingYes
Video streamingYes
Audio
Built-in microphoneYes
Signal-to-Noise Ratio (SNR)56 dB
Network
BluetoothNo
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Networking standardsIEEE 802.1x
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast
Wi-FiNo
Storage
Built-in HDDNo
Internal memory128 MB
ROM capacity16 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Security
MirrorYes
Security algorithmsHTTPS
Video motion detectionYes
Management features
Management softwareSmart PSS; DSS; DMSS
Web browserYes
Power
DC output voltage12
Power consumption (max)4.5 W
Power consumption (typical)2.3 W
Power source typeDC
Operational conditions
Operating relative humidity (H-H)0 – 95 %
Operating temperature (T-T)-40 – 60 °C
Storage temperature (T-T)-40 – 60 °C
System requirements
Mobile operating systems supportedAndroid/iOS
Weight & dimensions
Depth70.1 mm
Height70.1 mm
Weight320 g
Width162.1 mm
Packaging content
Number of cameras1
Category CodeFNC
Unit Box Height0.11
Unit Box Length0.21
Unit Box Width0.1
ModelIPC-HFW1530S-0280B-S6
Units per Shipping Box1
Unit Calculated Volume0.00231 cubm
Unit Calculated Weight0.441 kg
