NET CAMERA 5MP IR BULLET/HFW5541E-ASE-0280B-S3 DAHUA - Image 1

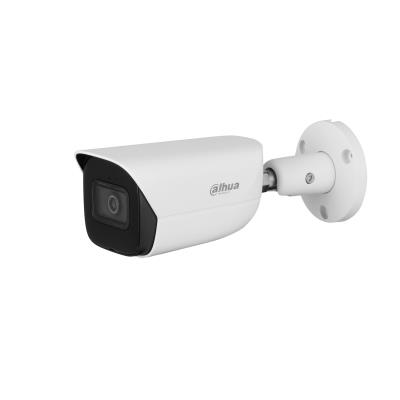

NET CAMERA 5MP IR BULLET/HFW5541E-ASE-0280B-S3 DAHUA

133,00 €164,92 € KM-taKM-ga
Dahua Technology WizMind IPC-HFW5541E-ASE-0280B-S3. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 111°, Lens viewing angle, vertical: 58°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″). Detect distance: 63.6 m, Observe distance: 25.4 m, Recognize distance: 12.7 m

  • 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image
  • Outputs max. 5 MP (2960×1668) @25/30fps
  • Built-in IR LED, and the max. illumination distance is 50 m
  • ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC
  • 12 VDC/PoE power supply; ePoE
  • IP67 protection
  • SMD 3.0
Category: , ,
Brands:

Kirjeldus

Design
Form factorBullet
Housing materialMetal
International Protection (IP) codeIP67
Mounting typeWall
Product colourWhite
Performance
Alarm input/outputYes
Connectivity technologyWired
Day/night modeYes
People counting functionYes
Placement supportedIndoor & outdoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Camera
Angle of rotation360 °
Camera shutter speed1/3 – 1/100000 s
Camera shutter typeElectronic
Lens viewing angle, diagonal132 °
Lens viewing angle, horizontal111 °
Lens viewing angle, vertical58 °
Minimum illumination0 lx
Pan range0 – 360 °
Tilt angle range0 – 90 °
White balanceAuto/Manual/Natural/Outdoor/Regional custom/Street lamp
Image sensor
Optical sensor size1/2.7 “
Progressive scanYes
Sensor typeCMOS
Lens system
Closest focusing distance1.1 m
Detect distance63.6 m
Fixed focal length2.8 mm
Identify distance6.4 m
Minimum aperture number1.6
Observe distance25.4 m
Recognize distance12.7 m
Night vision
Night visionYes
Night vision distance50 m
Number of illumination LEDs1
Video
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Gain control typeAuto
Highlight Compensation (HLC)Yes
Maximum resolution2960 x 1668 pixels
Noise reductionYes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/2688 x 1520/2880 x 1620/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels5 MP
Video compression formatsH.264/H.264B/H.264H/H.265/M-JPEG
Video streamingYes
Audio
Audio input channels1.0 channels
Audio output channels1.0 channels
Built-in microphoneYes
Signal-to-Noise Ratio (SNR)56 dB
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Number of users20 user(s)
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Wi-FiNo
Storage
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Internal memory1024 MB
Maximum memory card size512 GB
ROM capacity4096 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Security
Alarm input channels1
Alarm output channels1
MirrorYes
Video motion detectionYes
Management features
Management softwareSmartPSS Lite; DSS; DMSS
Web browserYes
Power
DC output voltage12
Power consumption (Power over Ethernet (PoE))5.8 W
Power consumption (typical)4 W
Power source typeDC,PoE
Operational conditions
Operating temperature (T-T)-40 – 60 °C
Storage relative humidity (H-H)10 – 95 %
Storage temperature (T-T)-40 – 60 °C
System requirements
Mobile operating systems supportedAndroid/iOS
Weight & dimensions
Depth192.7 mm
Height66.4 mm
Weight590 g
Width70.5 mm
Packaging data
Package weight780 g
Packaging content
Number of cameras1
Category CodeFNC
Unit Box Height0.1
Unit Box Length0.22
Unit Box Width0.115
ModelIPC-HFW5541E-ASE-0280B-S3
Units per Shipping Box1
Unit Calculated Volume0.00253 cubm
Unit Calculated Weight0.783 kg
