Kirjeldus
Design
Form factorBullet
Housing materialMetal/Plastic
International Protection (IP) codeIP67
Mounting typeCeiling/wall
Product colourWhite
Performance
Alarm input/outputYes
CertificationCE-LVD: EN62368-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC 15, B
Connectivity technologyWired
Day/night modeYes
Placement supportedOutdoor

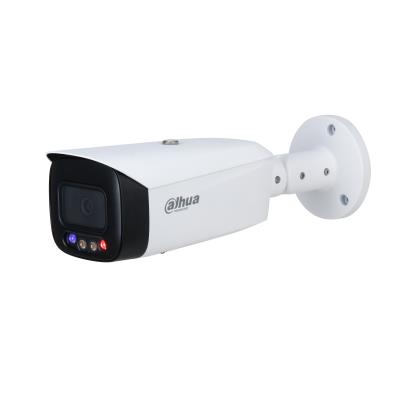

TypeIP security camera
Wide Dynamic Range (WDR)Yes
Camera
Angle of rotation360 °
Camera pan controlYes
Camera shutter speed1/3 – 1/100000 s
Camera tilt controlYes
Lens viewing angle, diagonal129 °
Lens viewing angle, horizontal98 °
Lens viewing angle, vertical71 °
Minimum illumination0.003 lx
Pan range0 – 360 °
Tilt angle range0 – 90 °
White balanceAuto/Custom modes/Manual/Natural/Outdoor
Image sensor
Number of sensors1
Optical sensor size1/2.7 “
Progressive scanYes
Sensor typeCMOS
Lens system
Closest focusing distance1.2 m
Detect distance67.4 m
Fixed focal length2.8 mm
Identify distance6.7 m
Maximum aperture number1
Number of lenses1
Observe distance27 m
Recognize distance13.5 m
Night vision
LED typeIR
Night visionYes
Night vision distance40 m
Video
Back Light Compensation (BLC)Yes
Bit rate32 – 8192 Kbps, 12 – 8192 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate30 fps
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Maximum resolution2592 x 1944 pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Privacy maskingYes
Region of Interest (ROI) encodingYes
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2592 x 1944/2688 x 1520/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels5 MP
Video compression formatsH.264/H.264+/H.265/H.265+/M-JPEG
Video streamingYes
Audio
Audio input channels1.0 channels
Audio output channels1.0 channels
Built-in microphoneYes
Voice codecsAAC/G.711a/G.711Mu/G.723/G.726/PCM
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Networking standardsIEEE 802.1x/IEEE 802.3af
Number of users20 user(s)
Quality of Service (QoS) supportYes
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Wi-FiNo
Storage
Built-in HDDNo
Internal memory512 MB
ROM capacity128 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Security
Intelligent Video Surveillance (IVS) system featuresIntrusion/Tripwire
MirrorYes
Video motion detectionYes
Management features
Web-based managementYes
Power
DC output voltage12
Power consumption (max)2 W
Power consumption (Power over Ethernet (PoE))2.6 W
Power source typeDC,PoE
Operational conditions
Operating relative humidity (H-H)0 – 95 %
Operating temperature (T-T)-40 – 60 °C
Storage relative humidity (H-H)0 – 95 %
Storage temperature (T-T)-40 – 60 °C
Weight & dimensions
Depth84.7 mm
Length288.4 mm
Weight1000 g
Width94.4 mm
Packaging data
Package weight1230 g
Packaging content
Number of cameras1
Category CodeFNC
Unit Box Height0.14
Unit Box Length0.34
Unit Box Width0.15
Units per Shipping Box8
Unit Calculated Volume0.008165 cubm
Unit Calculated Weight1.41 kg
