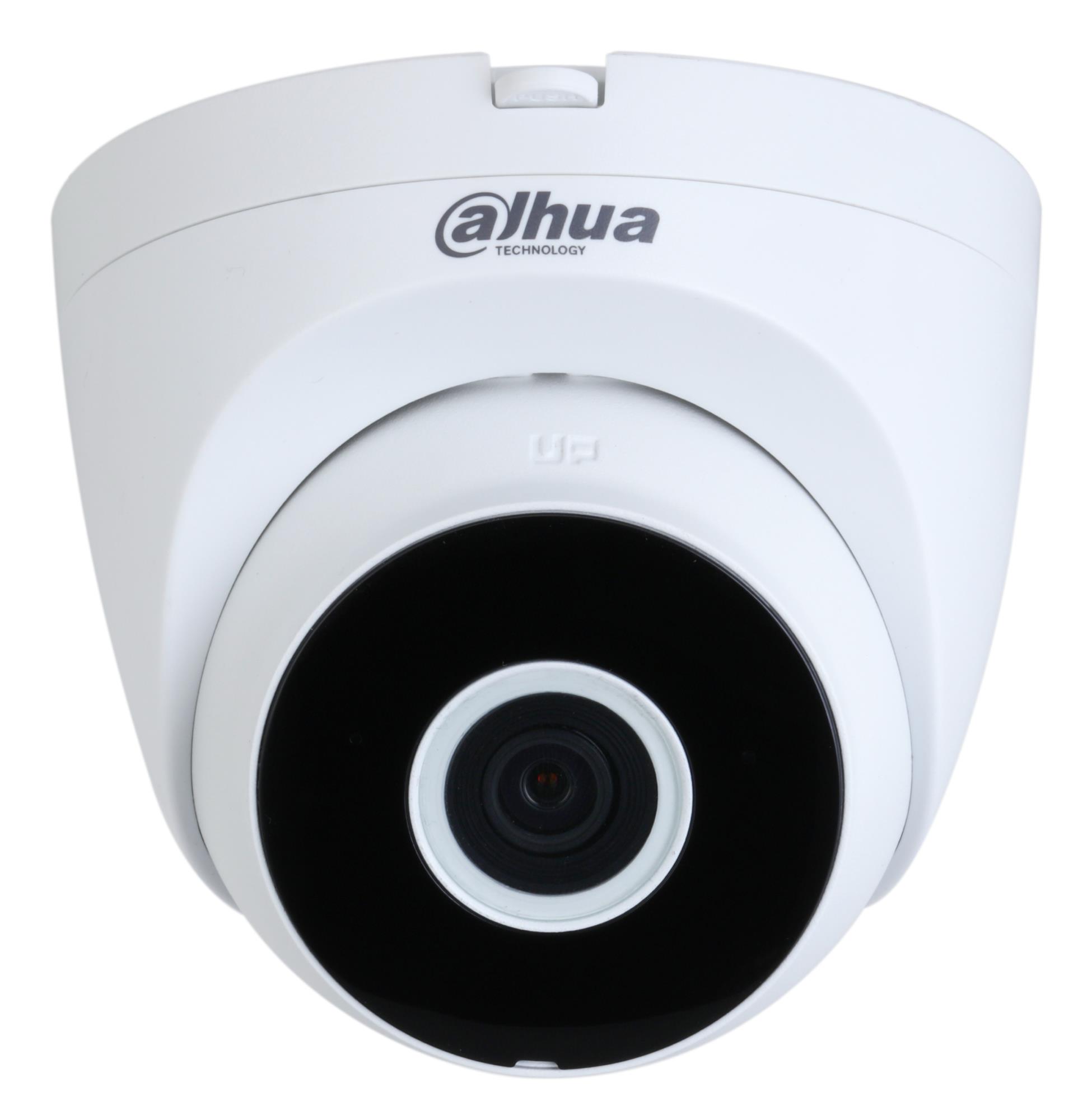

NET CAMERA 4MP IR EYEBALL WIFI/IPC-HDW1430DT-SAW-0280B DAHUA - Image 1

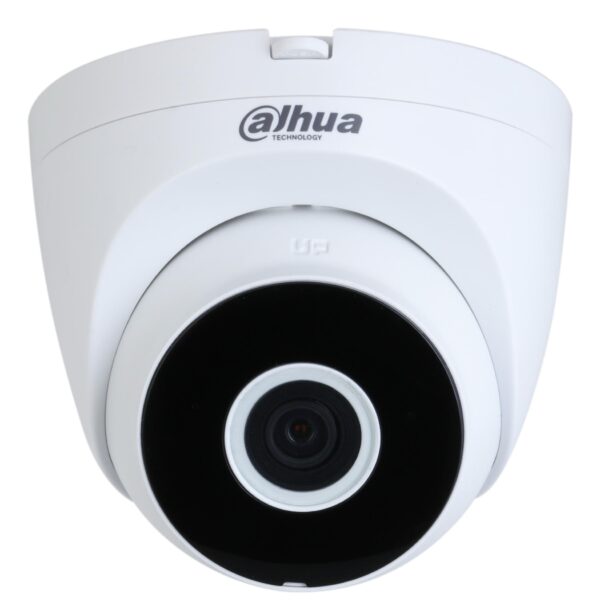

NET CAMERA 4MP IR EYEBALL WIFI/IPC-HDW1430DT-SAW-0280B DAHUA

80,00 €99,20 € KM-taKM-ga
Dahua Technology IPC-HDW1430DT-SAW-0280B. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.003 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3″). Detect distance: 68 m, Observe distance: 27.2 m, Recognize distance: 13.6 m

  • 4-MP 1/3″ CMOS image sensor, low luminance, and high definition image
  • Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED
  • SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes
  • Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and SMD (human)
  • The antenna offers 2.4G Wi-Fi with a range of 120 m
  • Supports max. 256 G Micro SD card.Built-in MIC
  • 12 VDC power supply
Category: , ,
Brands:

Kirjeldus

Design
Form factorDome
Housing materialMetal/Plastic
International Protection (IP) codeIP67
Mounting typeCeiling/Wall/Pole
Product colourWhite
Performance
Connectivity technologyWired & Wireless
Day/night modeYes
Placement supportedIndoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Camera
Angle of rotation360 °
Camera pan controlYes
Camera shutter speed1/3 – 1/100000 s
Camera tilt controlYes
Lens viewing angle, diagonal107 °
Lens viewing angle, horizontal90 °
Lens viewing angle, vertical50 °
Minimum illumination0.003 lx
Pan range0 – 360 °
Tilt angle range0 – 78 °
White balanceAuto/Manual/Natural/Outdoor/Regional custom/Street lamp
Image sensor
Number of sensors1
Optical sensor size1/3 “
Progressive scanYes
Sensor typeCMOS
Lens system
Closest focusing distance1 m
Detect distance68 m
Fixed focal length2.8 mm
Fixed focusYes
Identify distance6.8 m
Maximum aperture number2
Observe distance27.2 m
Recognize distance13.6 m
Night vision
LED typeIR
Night visionYes
Night vision distance30 m
Number of illumination LEDs1
Video
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Frame rate30 fps
Gain control typeAuto
Maximum resolution2560 x 1440 pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Total megapixels4 MP
Video compression formatsH.264/H.264B/H.264H/H.265
Video recordingYes
Video streamingYes
Audio
Built-in microphoneYes
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Networking standardsIEEE 802.1x
Streaming methodMulticast
Supported network protocolsIPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, RTMP
Wi-FiYes
Wi-Fi standards802.11b/802.11g/Wi-Fi 4 (802.11n)
Storage
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
RAM capacity64 MB
ROM capacity16 MB
Ports & interfaces
DC-in jackYes
Ethernet LAN (RJ-45) ports1
Security
IP address filteringYes
MirrorYes
Video motion detectionYes
Power
DC output voltage12
Power consumption (max)4.2 W
Power consumption (typical)2 W
Power source typeDC
Operational conditions
Operating temperature (T-T)-30 – 60 °C
Storage temperature (T-T)-30 – 60 °C
System requirements
Mobile operating systems supportedAndroid/iOS
Weight & dimensions
Diameter109.9 mm
Height102.2 mm
Weight316.9 g
Sustainability
Compliance certificatesCE/Federal Communications Commission (FCC)
Packaging data
Package weight463 g
Packaging content
ManualYes
Number of cameras1
Category CodeFNC
Unit Box Height0.11
Unit Box Length0.14
Unit Box Width0.125
ModelIPC-HDW1430DT-SAW-0280B
Units per Shipping Box1
Unit Calculated Volume0.001925 cubm
Unit Calculated Weight0.473 kg
