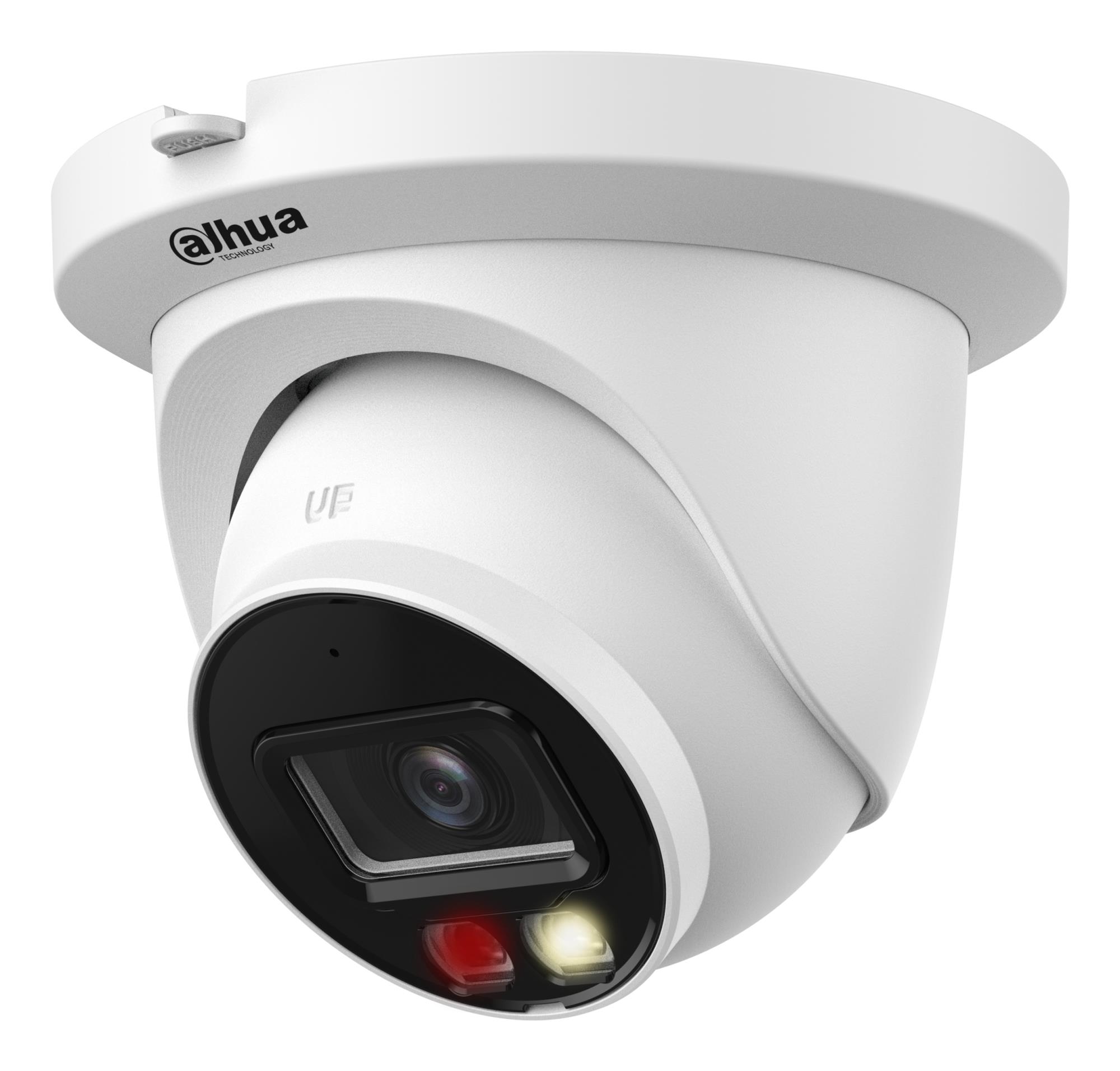

NET CAMERA 4MP IR EYEBALL/IPC-HDW2449TM-S-IL-0280B DAHUA - Image 1

NET CAMERA 4MP IR EYEBALL/IPC-HDW2449TM-S-IL-0280B DAHUA

88,00 €109,12 € KM-taKM-ga
Dahua Technology WizSense IPC-HDW2449TM-S-IL-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 95°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9″). Detect distance: 63.6 m, Observe distance: 25.4 m, Recognize distance: 12.7 m

  • 4-MP 1/2.9″ CMOS image sensor, low luminance, and high definition image
  • Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Supports max. 256 G Micro SD card; built in MIC
  • 12 VDC/PoE power supply, easy for installation
  • IP67 protection
Category: , ,
Brands:

Kirjeldus

Design
Form factorDome
Housing materialMetal/Plastic
International Protection (IP) codeIP67
Mounting typeCeiling
Product colourWhite
Performance
Connectivity technologyWired
Day/night modeYes
Dynamic range120 dB
Placement supportedOutdoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Camera
Angle of rotation360 °
Camera pan controlYes
Camera shutter speed1/3 – 1/100000 s
Camera tilt controlYes
Lens viewing angle, diagonal114 °
Lens viewing angle, horizontal95 °
Lens viewing angle, vertical52 °
Minimum illumination0.0006 lx
Number of Privacy masking areas4
Pan range0 – 360 °
Tilt angle range0 – 78 °
White balanceAuto/Manual/Natural/Outdoor/Regional custom/Street lamp
Image sensor
Number of sensors1
Optical sensor size1/2.9 “
Progressive scanYes
Sensor typeCMOS
Lens system
Closest focusing distance0.9 m
Detect distance63.6 m
Fixed focal length2.8 mm
Fixed focusYes
Identify distance6.4 m
Maximum aperture number1.6
Observe distance25.4 m
Recognize distance12.7 m
Night vision
Colour night vision distance30 m
LED typeIR
Night visionYes
Night vision distance30 m
Number of illumination LEDs2
Video
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate30 fps
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Maximum resolution2688 x 1520 pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Region of Interest (ROI) encodingYes
Total megapixels4 MP
Video compression formatsH.264/H.264B/H.264H/H.265/M-JPEG
Video recordingYes
Video streamingYes
Audio
Audio formats supportedG.711/G.711 µ-law/G.726/PCM
Built-in microphoneYes
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Networking standardsIEEE 802.1x/IEEE 802.3af
Streaming methodMulticast
Supported network protocolsIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, ICMP, IGMP, P2P
Wi-FiNo
Storage
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
RAM capacity128 MB
ROM capacity128 MB
Ports & interfaces
DC-in jackYes
Ethernet LAN (RJ-45) ports1
Security
Human and vehicle targets classificationYes
IP address filteringYes
MirrorYes
Video motion detectionYes
Power
DC output voltage12
Power consumption (max)4.4 W
Power consumption (typical)2.1 W
Power source typeDC,PoE
Operational conditions
Operating temperature (T-T)-40 – 60 °C
Storage temperature (T-T)-40 – 60 °C
System requirements
Mobile operating systems supportedAndroid/iOS
Weight & dimensions
Diameter121.9 mm
Height99.1 mm
Weight460 g
Sustainability
Compliance certificatesCE/Federal Communications Commission (FCC)/UL
Packaging data
Package weight650 g
Packaging content
ManualYes
Number of cameras1
Category CodeFNC
Unit Box Height0.14
Unit Box Length0.14
Unit Box Width0.115
ModelDHI-IPC-HDW2449TM-S-IL-0280B
Units per Shipping Box1
Unit Calculated Volume0.002254 cubm
Unit Calculated Weight0.66 kg
