NET CAMERA 4MP IR BULLET/IPC-HFW3441E-AS-0280B-S2 DAHUA - Image 1

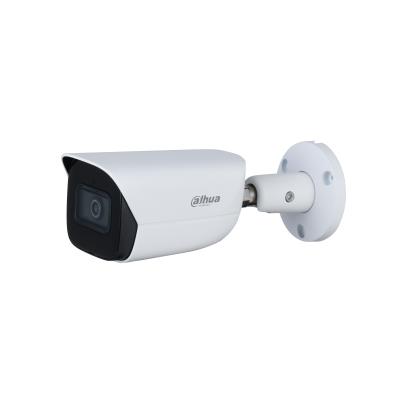

NET CAMERA 4MP IR BULLET/IPC-HFW3441E-AS-0280B-S2 DAHUA

137,00 €169,88 € KM-taKM-ga
Dahua Technology Lite IPC-HFW3441E-AS. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 103°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3″), Number of effective pixels (H x V): 2688 x 1520 pixels. Detect distance: 56 m, Observe distance: 22.4 m, Recognize distance: 11.2 m

  • 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
  • Outputs max. 4MP (2688 × 1520)@30 fps
  • H.265 codec, high compression rate, low bit rate
  • Built-in IR LED, max. IR distance: 50 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire
  • Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card, built-in Mic
  • 12V DC/POE power support
  • IP67 protection
  • SMD
Category: , ,
Brands:

Kirjeldus

Design
Form factorBullet
Housing materialMetal
International Protection (IP) codeIP67
Mounting typeCeiling/wall
Product colourWhite
Performance
Alarm input/outputYes
CertificationCE-LVD: EN60950-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Connectivity technologyWired
Day/night modeYes
Placement supportedOutdoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Camera
Adjustment shutter speedAuto/Manual
Angle of rotation360 °
Camera pan controlYes
Camera shutter speed1/3 – 1/100000 s
Camera shutter typeElectronic
Camera tilt controlYes
Lens viewing angle, diagonal122 °
Lens viewing angle, horizontal103 °
Lens viewing angle, vertical55 °
Minimum illumination0.005 lx
Pan range0 – 360 °
Tilt angle range0 – 90 °
White balanceAuto/Manual/Natural/Outdoor
Image sensor
Number of effective pixels (H x V)2688 x 1520 pixels
Number of sensors1
Optical sensor size1/3 “
Progressive scanYes
Sensor typeCMOS
Lens system
Closest focusing distance0.9 m
Detect distance56 m
Fixed focal length2.8 mm
Identify distance5.6 m
Maximum aperture number1.6
Number of lenses1
Observe distance22.4 m
Recognize distance11.2 m
Night vision
LED typeIR
Night visionYes
Night vision distance50 m
Number of illumination LEDs1
Video
Back Light Compensation (BLC)Yes
Bit rate3 Kbps-8192 Kbps
Bit rate controlConstant Bit Rate (CBR),Variable Bit Rate (VBR)
Frame rate30 fps
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Maximum resolution2688 x 1520 pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Privacy maskingYes
Region of Interest (ROI) encodingYes
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/2304 x 1296/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels4 MP
Video compression formatsH.264/H.264+/H.265/H.265+/M-JPEG
Video streamingYes
Audio
Audio input channels1.0 channels
Audio output channels1.0 channels
Built-in microphoneYes
Voice codecsG.711a/G.711Mu/G.723/G.726
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Networking standardsIEEE 802.3af
Number of users20 user(s)
Quality of Service (QoS) supportYes
Supported network protocolsIPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Wi-FiNo
Storage
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Internal memory512 MB
Maximum memory card size256 GB
ROM capacity128 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Security
Intelligent Video Surveillance (IVS) system featuresPeople counting/Tripwire
Video motion detectionYes
Management features
Behavior analysisIntrusion detection,Line crossing detection
Web browserYes
Web-based managementYes
Power
DC output voltage12
Power consumption (max)5.4 W
Power source typeDC,PoE
Operational conditions
Operating relative humidity (H-H)0 – 95 %
Operating temperature (T-T)-40 – 60 °C
Storage temperature (T-T)-40 – 60 °C
System requirements
Mobile operating systems supportedAndroid/iOS
Weight & dimensions
Depth66.4 mm
Length192.7 mm
Weight590 g
Width70.5 mm
Packaging data
Package weight780 g
Packaging content
Number of cameras1
Category CodeFNC
Unit Box Height0.11
Unit Box Length0.25
Unit Box Width0.14
ModelIPC-HFW3441E-AS-0280B-S2
Units per Shipping Box1
Unit Calculated Volume0.00385 cubm
Unit Calculated Weight0.77 kg
