Base Attributes

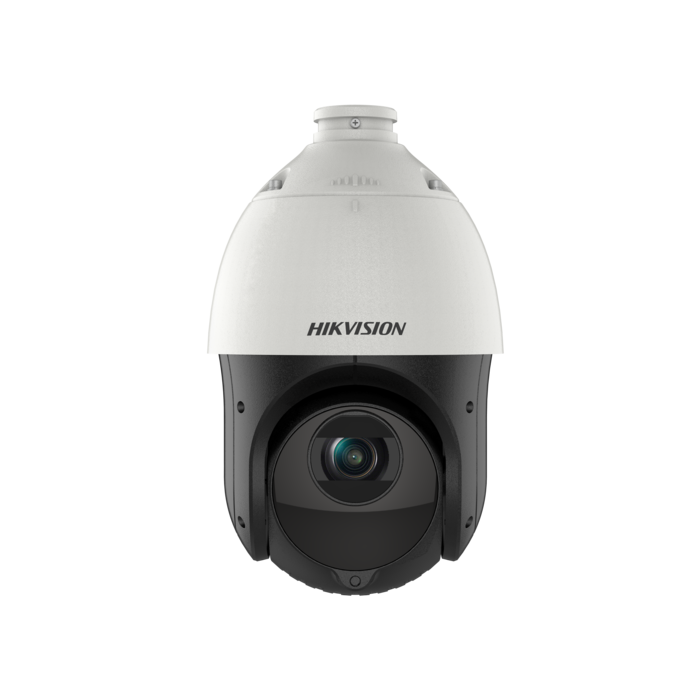

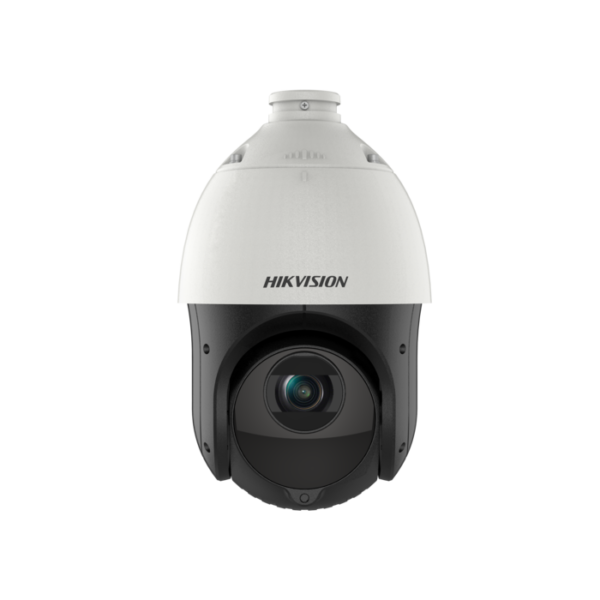

| Brand | Hikvision |
|---|---|
| Manufacturer Code | DS-2DE4225IW-DE(T5) |
| Net Weight | 2.29 |
| Gross Weight | 4.538 |
Key Parameter
| Resolutsioon | 2 MP |
|---|---|
| Optical Zoom | 21-30X |
| Low-Light Imaging | Powered by Darkfighter |
| Illumination Distance | 51-100m |
| Wireless Network | N/A |
Camera
| Image Sensor | 1/2.8″ progressive scan CMOS |
|---|---|
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Day & Night | IR cut filter |
| Zoom | 25 × optical, 16 × digital |
Lens
| FOV | Horizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele) |
|---|
Illuminator
| Supplement Light Type | IR |
|---|---|
| Supplement Light Range | IR Distance: up to 100 m |
PTZ
| Movement Range (Pan) | 360° |
|---|---|
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
Video
| Video Bit Rate | 32 kbps to 16384 kbps |
|---|---|
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
Network
| Simultaneous Live View | Up to 20 channels |
|---|---|
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
| Day/Night Switch | Day, Night, Auto, Schedule |
|---|---|
| SNR | > 52 dB |
| Image Stabilization | No |
| Defog | Digital defog |
Interface
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
|---|---|
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Alarm | 1 input, 1 output |
Event
| Basic Event | Motion detection, video tampering alarm, exception, alarm input and output |
|---|---|
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
Deep Learning Function
| Face Capture | Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face |
|---|---|
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
General
| Demist | Yes |
|---|---|
| Operating Condition | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC |
| Dimension | Ø 164.5 mm × 290 mm (Ø 6.48″ × 11.42″) |
Approval
| Protection | IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection |
|---|---|
| Safety | UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) |
