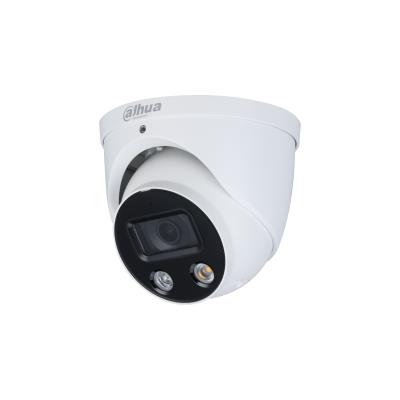

NET CAMERA 8MP IR EYEBALL/IPC-HDW3849HASPV0280BS3 DAHUA

134,00 166,16  KM-taKM-ga

Dahua Technology IPC-HDW3849HP-AS-PV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.007 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 107°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″), Number of effective pixels (H x V): 3840 x 2160 pixels. Fixed focal length: 2.8 mm 8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition Outputs max.8MP (3840 × 2160) @20 fps (AI function enabled by default)and supports 8MP (3840 × 2160) @25/30 fps (when AI function disabled) H.265 codec, high compression rate, low bit rate Built-in warm illuminator, and the max. illumination distance: 30 m ROI, Smart H.265+/Smart H.264+, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent detection: Intrusion, tripwire (support the classification and · accurate detection of vehicle and human) Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Supports sound and light alarm linkage. When an alarm is triggered, the camera…

Kirjeldus

Design
Form factorDome
Housing materialMetal/Plastic
International Protection (IP) codeIP67
Mounting typeCeiling
Product colourWhite
Performance
Alarm input/outputYes
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Connectivity technologyWired
Day/night modeYes
Placement supportedIndoor & outdoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Camera
Adjustment shutter speedAuto/Manual
Angle of rotation360 °
Camera shutter speed1/3 s-1/100,000 s s
Camera shutter typeElectronic
Lens viewing angle, diagonal127 °
Lens viewing angle, horizontal107 °
Lens viewing angle, vertical56 °
Minimum illumination0.007 lx
Pan range0 – 360 °
Tilt angle range0 – 78 °
White balanceAuto/Lamp/Manual/Natural/Outdoor
Image sensor
Number of effective pixels (H x V)3840 x 2160 pixels
Number of sensors1
Optical sensor size1/2.8 “
Progressive scanYes
Sensor typeCMOS
Lens system
Fixed focal length2.8 mm
Maximum aperture number1.4
Number of lenses1
Night vision
LED typeIR
Night visionYes
Night vision distance30 m
Number of illumination LEDs1
Video
Analog signal format systemPAL
Back Light Compensation (BLC)Yes
Bit rate32 kbps-8192 kbps
Bit rate controlConstant Bit Rate (CBR),Variable Bit Rate (VBR)
Frame rate30 fps
Highlight Compensation (HLC)Yes
Maximum resolution3840 x 2160 pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Privacy maskingYes
Region of Interest (ROI) encodingYes
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2592 x 1944/2688 x 1520/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/720 x 480/720 x 576
Total megapixels8 MP
Video compression formatsH.264/H.264+/H.265/H.265+
Audio
Built-in microphoneYes
Signal-to-Noise Ratio (SNR)56 dB
Voice codecsG.711a/G.711Mu/G.726
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Networking standardsIEEE 802.3af
Quality of Service (QoS) supportYes
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Wi-FiNo
Storage
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Internal memory512 MB
Maximum memory card size256 GB
ROM capacity128 MB
Ports & interfaces
Headphone outputs1
Microphone inYes
Security
Digital watermarkYes
HTTPS encryptionYes
Intelligent Video Surveillance (IVS) system featuresIntrusion/Tripwire
MirrorYes
Video motion detectionYes
Management features
Web browserYes
Power
DC output voltage12
Power consumption (Power over Ethernet (PoE))3.5 W
Power consumption (typical)3.1 W
Power source typeDC,PoE
Operational conditions
Operating relative humidity (H-H)0 – 95 %
Operating temperature (T-T)-40 – 60 °C
Storage temperature (T-T)-40 – 60 °C
System requirements
Mobile operating systems supportedAndroid/iOS
Weight & dimensions
Diameter122 mm
Height110.9 mm
Weight754 g
Packaging data
Package weight915 g
Packaging content
Number of cameras1
Category CodeFNC
Unit Box Height0.14
Unit Box Length0.16
Unit Box Width0.16
Units per Shipping Box1
Unit Calculated Volume0.003584 cubm
Unit Calculated Weight0.933 kg
