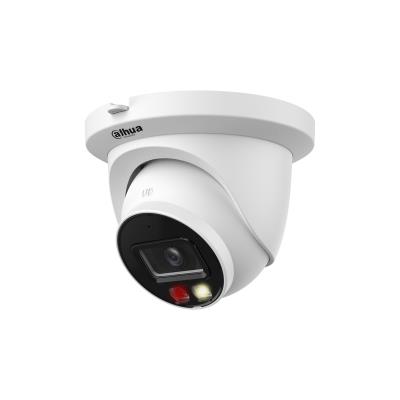

NET CAMERA 8MP IR EYEBALL/IPC-HDW2849TM-S-IL-0280B DAHUA - Image 1

NET CAMERA 8MP IR EYEBALL/IPC-HDW2849TM-S-IL-0280B DAHUA

101,00 €125,24 € KM-taKM-ga
Dahua Technology WizSense DH-IPC-HDW2849TMP-S-IL-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Angle of rotation: 360°, Tilt angle range: 0 – 78°, Pan range: 0 – 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″). Night vision distance: 30 m, LED type: IR

8MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera

  • 8-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image
  • Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in warm light and IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Supports max. 256 G Micro SD card; built in MIC
  • 12 VDC/PoE power supply, easy for installation
  • IP67 protection
  • SMD Plus
Category: , ,
Brands:

Kirjeldus

Design
Form factorDome
International Protection (IP) codeIP67
Mounting typeCeiling/Wall/Pole
Product colourWhite
Protection featuresDust resistant
Performance
Built-in lightYes
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Connectivity technologyWired
Day/night modeYes
Infrared (IR) cut-off filterYes
Placement supportedOutdoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Camera
Angle of rotation360 °
Camera shutter speed1/3 -1/100000 s
Camera shutter typeElectronic
Pan range0 – 360 °
Tilt angle range0 – 78 °
White balanceAuto/Manual/Natural/Outdoor/Regional custom/Street lamp
Image sensor
Number of sensors1
Optical sensor size1/2.7 “
Progressive scanYes
Sensor typeCMOS
Lens system
Minimum aperture number1.6
Number of lenses2.8
Night vision
LED typeIR
Night visionYes
Night vision distance30 m
Video
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Maximum resolution3840 x 2160 pixels
Privacy maskingYes
Region of Interest (ROI) encodingYes
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2688 x 1520/2880 x 1620/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels8 MP
Video compression formatsH.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Video streamingYes
Audio
Audio formats supportedG.711 µ-law/G.711 A-law/G.726/PCM
Signal-to-Noise Ratio (SNR)56 dB
Network
Ethernet interface typeFast Ethernet
Ethernet LANYes
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
Storage
Internal memory256 MB
ROM capacity128 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Security
Active tampering alarmYes
Intelligent Video Surveillance (IVS) system featuresIntrusion/Tripwire
Video motion detectionYes
Management features
Management softwareSmart PSS; DSS; DMSS
Web browserYes
Power
DC output voltage12
Power consumption (typical)2.6 W
Power source typeDC,PoC
Operational conditions
Operating relative humidity (H-H)0 – 95 %
Operating temperature (T-T)-40 – 55 °C
Storage temperature (T-T)-40 – 60 °C
System requirements
Mobile operating systems supportedAndroid/iOS
Weight & dimensions
Diameter121.9 mm
Weight480 g
Width99.1 mm
Packaging data
Package weight620 g
Packaging content
Number of cameras1
Category CodeFNC
Unit Box Height0.115
Unit Box Length0.138
Unit Box Width0.138
ModelIPC-HDW2849TM-S-IL-0280B
Units per Shipping Box1
Unit Calculated Volume0.00219 cubm
Unit Calculated Weight0.7 kg
