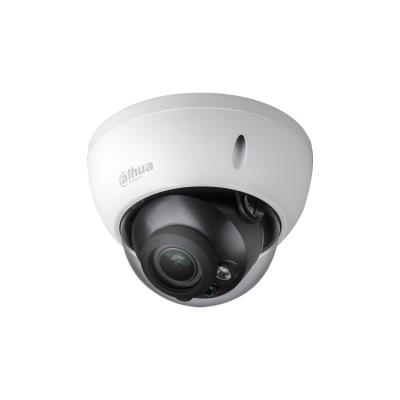

NET CAMERA 8MP EYEBALL/IPC-HDW3849QM-S-IL-0280B DAHUA - Image 1

NET CAMERA 8MP EYEBALL/IPC-HDW3849QM-S-IL-0280B DAHUA

138,00 €171,12 € KM-taKM-ga
Dahua Technology Lite DH-HAC-HDBW1200R-VF. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 106°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″). Focal length range: 2.7 – 13.5 mm, Focus: Manual, Detect distance (wide): 45 m

Experience 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Lite series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.

Category: , ,
Brands:

Kirjeldus

Design
Form factorDome
Housing materialAluminium
IK codeIK10
International Protection (IP) codeIP67
Mounting typeCeiling/wall
Product colourWhite
Protection featuresVandal proof
WeatherproofYes
Performance
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Connectivity technologyWired
Day/night modeYes
Infrared (IR) cut-off filterYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish
Number of languages11
Placement supportedIndoor & outdoor
Remote viewingYes
TypeCCTV security camera
Wide Dynamic Range (WDR)Yes
Camera
Angle of rotation355 °
Camera pan controlYes
Camera shutter speed1/25 – 1/100000 s
Camera tilt controlYes
Lens viewing angle, horizontal106 °
Minimum illumination0.02 lx
Pan range0 – 355 °
Tilt angle range0 – 75 °
White balanceAuto/Manual
Image sensor
Number of sensors1
Optical sensor size1/2.7 “
Progressive scanYes
Sensor typeCMOS
Lens system
Closest focusing distance0.2 m
Detect distance (tele)148 m
Detect distance (wide)45 m
Focal length range2.7 – 13.5 mm
FocusManual
Identify distance (tele)15 m
Identify distance (wide)5 m
Maximum aperture number1.3
Number of lenses1
Observe distance (tele)59 m
Observe distance (wide)18 m
Recognize distance (tele)30 m
Recognize distance (wide)9 m
Night vision
LED typeIR
Night visionYes
Night vision distance30 m
Number of illumination LEDs2
Video
Analog signal format systemPAL
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Frame rate25 fps
Gain control typeAuto
Highlight Compensation (HLC)Yes
Maximum resolution1920 x 1080 pixels
Noise reductionYes
Smart IRYes
Supported graphics resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)
Supported video modes1080p/720p
Total megapixels2 MP
Network
BluetoothNo
Ethernet LANNo
Wi-FiNo
Storage
Built-in HDDNo
Ports & interfaces
Composite video out1
Power
DC output voltage12
Power consumption (max)3.5 W
Power source typeDC
Operational conditions
Operating relative humidity (H-H)0 – 90 %
Operating temperature (T-T)-40 – 60 °C
Storage relative humidity (H-H)0 – 90 %
Storage temperature (T-T)-40 – 60 °C
Weight & dimensions
Diameter122 mm
Height88.9 mm
Weight400 g
Packaging data
Package weight550 g
Packaging content
Number of cameras1
Category CodeFNC
Unit Box Height0.135
Unit Box Length0.14
Unit Box Width0.15
Units per Pallet0
Units per Shipping Box1
Unit Calculated Volume0.002835 cubm
Unit Calculated Weight0.74 kg
