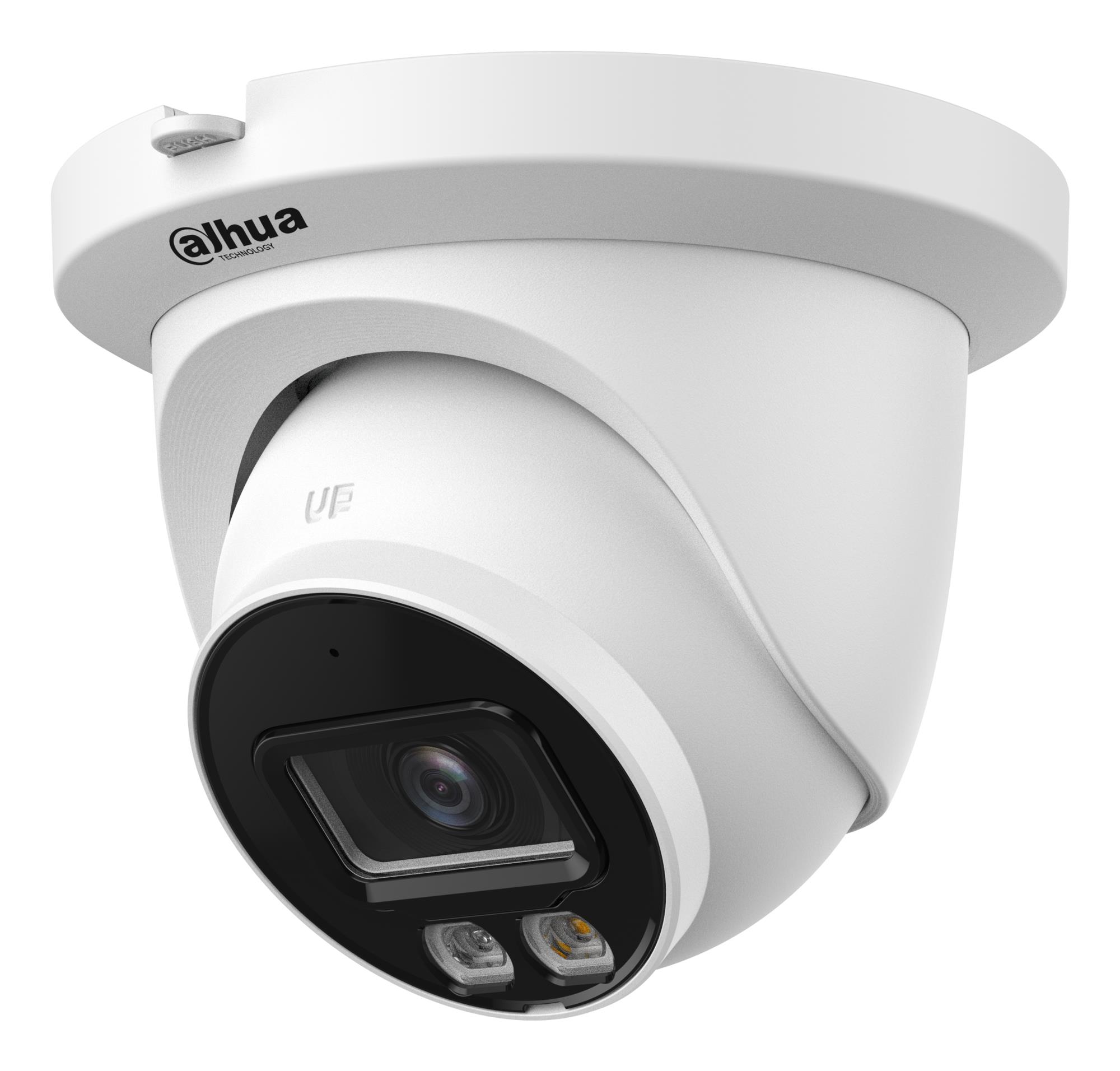

NET CAMERA 6MP EYEBALL/IPC-HDW2649TM-S-IL-0280B DAHUA - Image 1

NET CAMERA 6MP EYEBALL/IPC-HDW2649TM-S-IL-0280B DAHUA

96,00 €119,04 € KM-taKM-ga
Dahua Technology WizSense IPC-HDW2649TM-S-IL-0280B. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Turret. Minimum illumination: 0.0007 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 112°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″). Detect distance: 61.2 m, Observe distance: 24.5 m, Recognize distance: 12.2 m

  • 1/2.7″ CMOS image sensor, low luminance, and high definition image
  • Outputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Supports max. 256 G Micro SD card; built in Mic
  • 12 VDC/PoE power supply, easy for installation
Category: , ,
Brands:

Kirjeldus

Design
Form factorTurret
Housing materialMetal/Plastic
International Protection (IP) codeIP67
Mounting typeCeiling/Wall/Pole
Product colourWhite
Performance
Connectivity technologyWired
Day/night modeYes
Dynamic range120 dB
Placement supportedIndoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Camera
Angle of rotation360 °
Camera pan controlYes
Camera shutter speed1/3 – 1/100000 s
Camera tilt controlYes
Lens viewing angle, diagonal132 °
Lens viewing angle, horizontal112 °
Lens viewing angle, vertical61 °
Minimum illumination0.0007 lx
Number of Privacy masking areas4
Pan range0 – 360 °
Tilt angle range0 – 78 °
White balanceAuto/Manual/Natural/Outdoor/Regional custom/Street lamp
Image sensor
Number of sensors1
Optical sensor size1/2.7 “
Progressive scanYes
Sensor typeCMOS
Lens system
Closest focusing distance1 m
Detect distance61.2 m
Fixed focal length2.8 mm
Fixed focusYes
Identify distance6.1 m
Maximum aperture number1.6
Observe distance24.5 m
Recognize distance12.2 m
Night vision
Colour night vision distance30 m
LED typeIR
Night visionYes
Night vision distance30 m
Number of illumination LEDs2
Video
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate30 fps
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Maximum resolution3288 x 1850 pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Region of Interest (ROI) encodingYes
Total megapixels6 MP
Video compression formatsH.264/H.264B/H.264H/H.265/M-JPEG
Video recordingYes
Video streamingYes
Audio
Audio formats supportedG.711 µ-law/G.711 A-law/G.726/PCM
Built-in microphoneYes
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Ethernet LANYes
Networking standardsIEEE 802.1x
Quality of Service (QoS) supportYes
Streaming methodMulticast
Supported network protocolsIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, PPPoE, P2P
Wi-FiNo
Storage
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
RAM capacity256 MB
ROM capacity128 MB
Ports & interfaces
DC-in jackYes
Ethernet LAN (RJ-45) ports1
Security
Human and vehicle targets classificationYes
IP address filteringYes
MirrorYes
Network access storage (NAS)Yes
Video motion detectionYes
Power
DC output voltage12
Power consumption (max)4.6 W
Power consumption (typical)2.5 W
Power source typeDC,PoE
Operational conditions
Operating temperature (T-T)-40 – 60 °C
Storage temperature (T-T)-40 – 60 °C
System requirements
Mobile operating systems supportedAndroid/iOS
Weight & dimensions
Diameter121.9 mm
Height99.1 mm
Weight530 g
Sustainability
Compliance certificatesCE
Packaging data
Package weight670 g
Packaging content
ManualYes
Number of cameras1
Category CodeFNC
Unit Box Height0.11
Unit Box Length0.14
Unit Box Width0.14
ModelIPC-HDW2649TM-S-IL-0280B
Units per Pallet0
Units per Shipping Box20
Unit Calculated Volume0.002769 cubm
Unit Calculated Weight0.725 kg
