Kirjeldus
Base Attributes

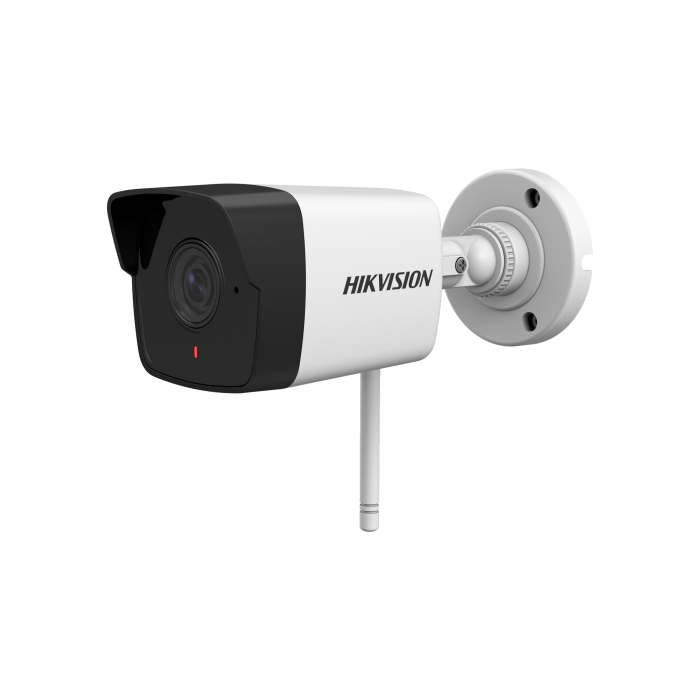

| Brand | Hikvision |
|---|---|
| Manufacturer Code | DS-2CV1021G0-IDW1(2.8mm)(D)FUS |
| Net Weight | 0.27 |
| Gross Weight | 0.67 |
Key Parameter
| Case type | Bullet |
|---|---|
| Resolutsioon | 2 MP |
| Lens Type | Fixed Lens |
| Low-Light Imaging | Normal |
| Illumination Distance | 21-50m |
| Wireless Network | Wi-Fi |
| Storage Type | SD Card |
| AI | N/A |
| Local Output | N/A |
Camera
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
|---|---|
| Min. Illumination | Color: 0.028 Lux @ (F2.0, AGC ON) |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90° |
Camera Module
| WDR | DWDR |
|---|
Lens
| FOV | 2.8 mm, horizontal FOV: 114.5°, vertical FOV: 62°, diagonal FOV: 135.5° 4 mm, horizontal FOV: 86°, vertical FOV: 46.5°, diagonal FOV: 102.5° |
|---|
Network
| Simultaneous Live View | Up to 6 channels |
|---|---|
| Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Client | Wired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible. |
| Day/Night Switch | Day, night, auto, scheduled |
|---|
Interface
| Audio | 1 Built-in mic, mono sound |
|---|---|
| On-Board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
General
| Power Supply | 12 VDC |
|---|
Approval
| Protection | Ingress protection: IP66 (IEC 60529-2013) |
|---|
